Firewall Documentation¶

Introduction¶

A zone-based firewall aims to simplify network security. Instead of complex per-interface rules, you work with zones and policies. Briefly, zones define a level of trust for all interfaces or networks assigned to it, and policies regulate the traffic flow between zones.

Zone based concept — Figure 1. Zones group interfaces, policies control traffic flows.

Three distinct traffic flows exist: traffic destined for the host itself, traffic between interfaces within the same zone (intra-zone), and traffic between different zones (inter-zones).

The zone approach is not just more intuitive and maintainable, it allows you to think more in terms of trust relationships:

"internal networks can access the Internet"
"Internet cannot access my internal network, except this port forward"

When you add new interfaces to existing zones, they automatically inherit the established security policies. The amount of actual rules that matter to you is kept to a minimum.

Impatient and ready to get going?

Fast forward to the Examples: End Device, Home/Office Router, Enterprise Gateway

Visual Overview¶

Use the zone matrix to quickly audit your firewall configuration and identify potential security gaps. It provides an overview and shows the relationship between zones and the policies that connect them. Each cell in the matrix represents a potential traffic flow, with rows indicating the ingress zone and columns the egress zone.

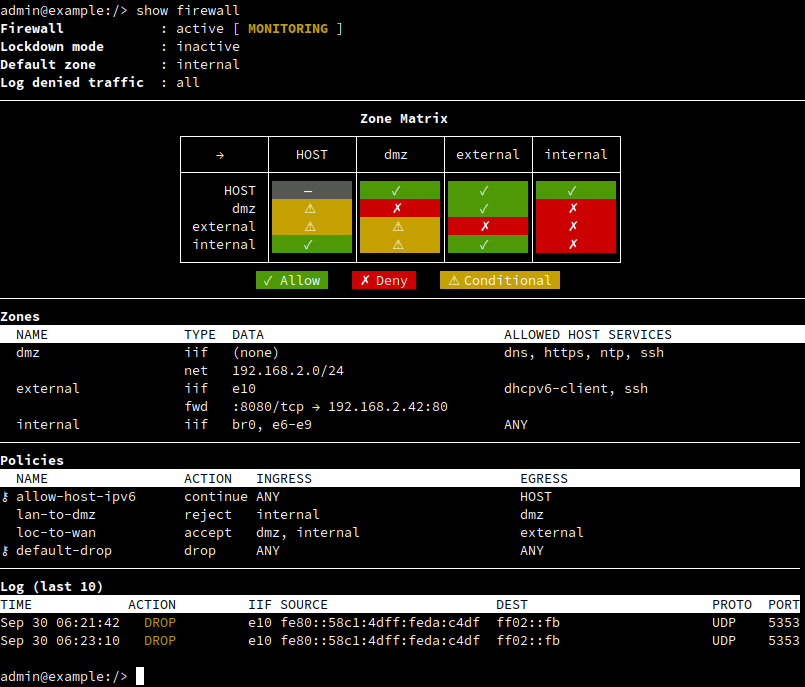

Firewall Matrix — Figure 2. Example output from `show firewall` command.

The matrix uses visual indicators to show the status of each zone and policy:

✓ Green checkmark — traffic is explicitly allowed by policy
✗ Red cross — traffic is blocked (default behavior)
⚠ Yellow warning — watch out! Some traffic allowed, such as port forwarding rules

This visualization helps you quickly understand your firewall's behavior and identify any unintended gaps or overly permissive rules in your configuration.

Use the ? key in the CLI

This admin-exec (top-level) CLI command has sub-commands that you can use to drill down on the operational data. Tap the ? key once to see an overview after show firewall, or just use the classic UNIX Tab key to complete everything until you've found your command.

Zones¶

Zones are logical groupings of network interfaces or IP networks that share the same trust level. Each zone has a default action that determines what happens to traffic destined for the host itself (INPUT chain). A LAN zone may have this set to accept, while a DMZ zone may be set to reject by default and only allow a subset of available services (e.g., DHCP, DNS, SSH) that devices in the DMZ can use to reach the host.

Important

Interfaces and networks are mutually exclusive in zones — attempting to configure both will result in a validation error. When setting up port forwarding from one zone to another, the destination network must be declared in a zone.

Default Zone¶

You must specify a default zone. This serves as a safety net: any interface not explicitly assigned to a zone automatically belongs to the default zone, ensuring network interfaces remain protected by the firewall. This automatic assignment is particularly useful when configuring new interfaces (e.g., VLANs, bridges, or hotplugged devices).

Choose your default zone carefully — it should be the most restrictive zone appropriate for unmanaged interfaces. For routers, this is typically the wan zone, but you can of course also set up a dedicated block zone. In the CLI, when first enabling the firewall, a public zone is created. See more about this in the example below.

Remember IP forwarding on interfaces!

Firewall policies only control whether traffic is allowed on input, to be forwarded, or blocked (default). For the actual routing between interfaces to work, you must also enable IP forwarding on the relevant interfaces.

Intra-Zone Traffic¶

Traffic between different interfaces, or networks, in the same zone is not forwarded by default. In most cases, if devices on separate interfaces need to communicate, they should be in different zones with a policy between them. Alternatively, if you want true LAN-like behavior, bridge the interfaces at layer-2 instead of routing between them at layer-3.

Intra-zone forwarding — routing traffic within a single zone — is rarely needed. But if you do require it, create a policy where both ingress and egress are set to the same zone, e.g., lan → lan.

Port Forwarding¶

Port forwarding, also known as destination NAT (DNAT), redirects inbound traffic to another address and/or port. This allows external access to internal services. See Enterprise Gateway for an example.

Each zone can have port forwarding rules that apply to traffic arriving at that zone's interfaces or matching its networks. The forwarded traffic must then be allowed by appropriate policies to reach the destination zone.

The Zone Matrix shows a ⚠ conditional warning flag, coloring the cell yellow, when exceptions like port forwarding are active.

Policies¶

In short, policy rules control traffic between zones. By default all inter-zone (and intra-zone) traffic is rejected. Meaning you must explicitly allow the traffic flows you intend.

Zone based firewall — Figure 3. Example of common traffic flows (policies) between zones.

IP masquerading (SNAT) is a policy setting that applies to traffic egressing a target zone. (Essential for Internet access from private networks.)

A policy, like zones, have a default action. If it is not set to accept you must specify which services on the host any zone interface and network are allowed access to.

Note

Policy rules apply in-order, the first matching rule with action drop will terminate the traffic flow. Use action continue to allow processing to go to the next rule, until the last (implicit) default-drop rule at the end.

The CLI currently does not support reordering rules. As a workaround, save your running-config to startup-config, then exit to the shell and edit the file with edit /cfg/startup-config.cfg.

See the examples below for how to set up a policy. The built-in help system can also be useful:

admin@example:/config/firewall/policy/lan-to-dmz/> help masquerade
NAME
        masquerade

DESCRIPTION
        Enable masquerading (SNAT) for traffic matching this policy.

        Matching traffic will have their source IP address changed on egress,
        using the IP address of the interface the traffic egresses.";

admin@example:/config/firewall/policy/lan-to-dmz/>

Symbolic Names¶

The symbolic names HOST and ANY are available for use in both ingress and egress zones. In fact, the CLI uses inference when first enabling the firewall to inject a default policy to allow automatic IPv6 address assignment.

HOST → ANY: Control device to any outbound connection (default: allowed)
ANY → HOST: Control what can reach device services (uncommon, usually per-zone)
Zone → HOST: Allow specific zone to access device services

Custom Filters¶

For more advanced firewall scenarios custom filters can be used. Currently only various ICMP type traffic control is supported. Enough to support the built-in allow-host-ipv6 policy and allow certain ICMP types on input or forward.

You can inspect this built-in (locked) policy from admin-exec level with the command: show firewall policy allow-host-ipv6.

Default Behavior¶

ICMP messages (particularly echo-request and echo-reply) can be used to reveal network information for malicious purposes. Therefore, the firewall blocks ICMP requests by default. This applies unless the zone's default action is accept.

To enable echo-request (IPv4) for any interface, or per zone when action is set to drop or reject, set up a dedicated policy with ingress ANY and egress HOST that use a custom filter to accept that ICMP type. Make this policy the first rule in your list of policies, and remember to use continue for non-matching traffic.

Another built-in behavior is automatically allowing "established,related" return traffic flows. This uses connection tracking - the firewall remembers outbound connections you initiate and automatically allows the corresponding inbound response traffic. This means you only need to configure rules for new connections; the firewall handles return traffic automatically without additional rules.

Services¶

Several pre-defined services exist, that cover most use-cases, but you can also define custom services for applications not covered by the built-in ones.

The firewall includes over 100 pre-defined services, such as:

ssh — Secure Shell (port 22/tcp)
http — Web traffic (port 80/tcp)
https — Secure web traffic (port 443/tcp)
dns — Domain Name System (port 53/tcp and 53/udp)
dhcp — DHCP server (port 67/udp)
dhcpv6-client — DHCPv6 client traffic
netconf — Network Configuration Protocol (port 830/tcp)
restconf — REST-based Network Configuration Protocol (port 443/tcp)

Use the ? key in the CLI

See the YANG model for the full list, or tap the ? key when setting up an allowed host service in a zone set service

Examples¶

End Device Protection¶

This is the default firewall setup, useful for end devices on untrusted networks. It provides maximum protection while allowing essential connectivity.

admin@example:/> configure
admin@example:/config/> edit firewall
admin@example:/config/firewall/> show
default public;
zone public {
  action reject;
  description "Public, unknown network. Only SSH and DHCPv6 client allowed.";
  service dhcpv6-client;
  service ssh;
}
admin@example:/config/firewall/> leave

The reject action differs from drop in that it responds to ICMP messages, although maybe not how you may think. Pinging the device we may¹ see this:

$ ping 192.168.122.161
From 192.168.122.161 icmp_seq=1 Packet filtered

If we run tcpdump it shows us why:

$ tcpdump -lni eth0
20:10:40.245707 IP 192.168.122.1 > 192.168.122.161: ICMP echo request, id 56838, seq 1, length 64
20:10:40.245961 IP 192.168.122.161 > 192.168.122.1: ICMP host 192.168.122.161 unreachable - admin prohibited filter, length 92

The key here is that, yes the device responds, but not with ICMP reply but ICMP unreachable, and a little helpful message.

The default zone is public, so all interfaces that are not explicitly assigned to another zone will be operationally placed in this zone as a safeguard. Inspect this from admin-exec context with show firewall, as can be seen in the below screenshot, the only interface e1 has been assigned automatically to the public zone. This information is also saved to the system log.

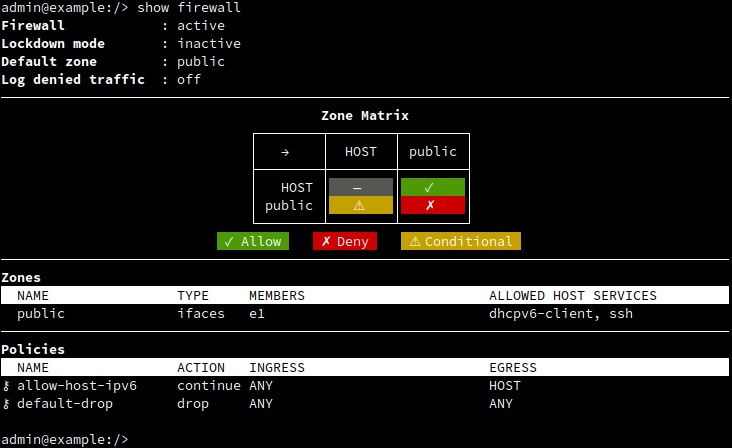

Initial firewall setup with default zone — Figure 4. Zone matrix and firewall overview from `show firewall`.

Important

These defaults are inferred for interactive CLI users. Enabling the firewall using NETCONF/RESTCONF will not yield the same results.

Home/Office Router¶

For typical routers that need to protect internal devices while providing internet access. The LAN zone trusts internal devices, while the WAN zone blocks external threats.

admin@example:/> configure
admin@example:/config/> edit firewall
admin@example:/config/firewall/> set default wan
admin@example:/config/firewall/> edit zone lan
admin@example:/config/firewall/zone/lan/> set description "Internal LAN network - trusted"
admin@example:/config/firewall/zone/lan/> set action accept
admin@example:/config/firewall/zone/lan/> set interface eth1
admin@example:/config/firewall/zone/lan/> set service ssh
admin@example:/config/firewall/zone/lan/> set service dhcp
admin@example:/config/firewall/zone/lan/> set service dns
admin@example:/config/firewall/zone/lan/> end
admin@example:/config/firewall/> edit zone wan
admin@example:/config/firewall/zone/wan/> set description "External WAN interface - untrusted"
admin@example:/config/firewall/zone/wan/> set action drop
admin@example:/config/firewall/zone/wan/> set interface eth0
admin@example:/config/firewall/zone/wan/> end
admin@example:/config/firewall/> edit policy loc-to-wan
admin@example:/config/firewall/policy/loc-to-wan/> set description "Allow LAN traffic to WAN with SNAT"
admin@example:/config/firewall/policy/loc-to-wan/> set ingress lan
admin@example:/config/firewall/policy/loc-to-wan/> set egress wan
admin@example:/config/firewall/policy/loc-to-wan/> set action accept
admin@example:/config/firewall/policy/loc-to-wan/> set masquerade
admin@example:/config/firewall/policy/loc-to-wan/> leave

Enterprise Gateway¶

For businesses that need to host public services while protecting internal resources. We can build upon the Home/Office Router example above and add a DMZ zone with additional policies for controlled access.

admin@example:/> configure
admin@example:/config/> edit firewall zone dmz
admin@example:/config/firewall/zone/dmz/> set description "Semi-trusted public services"
admin@example:/config/firewall/zone/dmz/> set action drop
admin@example:/config/firewall/zone/dmz/> set interface eth1
admin@example:/config/firewall/zone/dmz/> set service ssh
admin@example:/config/firewall/zone/dmz/> end
admin@example:/config/firewall/> edit policy loc-to-wan
admin@example:/config/firewall/policy/loc-to-wan/> set description "Allow local networks (LAN+DMZ) to WAN with SNAT"
admin@example:/config/firewall/policy/loc-to-wan/> set ingress dmz
admin@example:/config/firewall/policy/loc-to-wan/> set egress wan
admin@example:/config/firewall/policy/loc-to-wan/> set action accept
admin@example:/config/firewall/policy/loc-to-wan/> set masquerade
admin@example:/config/firewall/policy/loc-to-wan/> end
admin@example:/config/firewall/> edit policy lan-to-dmz
admin@example:/config/firewall/policy/lan-to-dmz/> set description "Allow LAN to manage DMZ services"
admin@example:/config/firewall/policy/lan-to-dmz/> set ingress lan
admin@example:/config/firewall/policy/lan-to-dmz/> set egress dmz
admin@example:/config/firewall/policy/lan-to-dmz/> set action accept
admin@example:/config/firewall/policy/lan-to-dmz/> end
admin@example:/config/firewall/> edit zone wan port-forward 8080 tcp
admin@example:/config/firewall/zone/wan/port-forward/8080/tcp/> set to addr 192.168.2.10
admin@example:/config/firewall/zone/wan/port-forward/8080/tcp/> set to port 80
admin@example:/config/firewall/zone/wan/port-forward/8080/tcp/> leave

This adds a DMZ zone for public services, updates the internet access policy to include DMZ traffic, allows LAN management of DMZ services, and forwards external web traffic to the DMZ server.

Logging and Monitoring¶

Different log levels are available to monitor and debug firewall behavior. Configure logging using the CLI:

admin@example:/> configure
admin@example:/config/> edit firewall
admin@example:/config/firewall/> set logging all
admin@example:/config/firewall/> leave

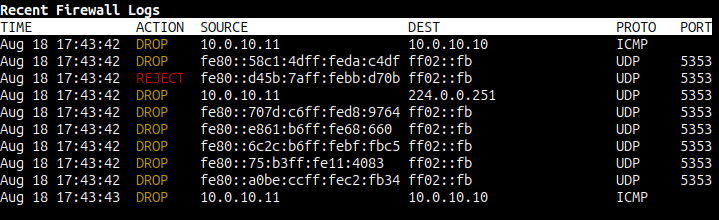

Firewall logs help you understand traffic patterns and security events. The CLI admin-exec command show firewall shows the last 10 log messages in the overview:

Use the command show log firewall.log to display the full logfile (remember, the syslog daemon rotates and zips too big log files). You can also use the follow firewall.log command to continuously monitor firewall log messages.

Netfilter Integration¶

The Infix firewall operates through Linux netfilter hooks. Understanding how the zones and policy concepts map to these hooks will hopefully help you understand the firewall's behavior and ease troubleshooting.

Packet Flow¶

Netfilter Hook	Function	Description
`prerouting`	ZONE	Classification of incoming traffic, match interfaces/networks with zones
`prerouting`	ZONE	Port forwarding (DNAT) from zone configuration
`input`	ZONE	Host input filtering (`services`)
`input`	ZONE	Default action for non-matching services (`action`)
`forward`	POLICY	Allow traffic between zones (inter-zone rules)
`postrouting`	POLICY	Masquerade (SNAT) when traffic egresses a zone

PREROUTING Hook¶

Zone Classification: Traffic is tagged based on ingress interface or source network
Port Forwarding: DNAT from zone configuration occurs before routing decisions
Connection Tracking: Early state establishment for stateful filtering

INPUT Hook¶

ANY-to-HOST Policies: Enforces policy rules for traffic destined to the host itself
Zone Services: Allows configured services (SSH, HTTP, etc.) based on zone trust level
Zone Action: Applies a default action (accept/reject/drop) for unmatched traffic

FORWARD Hook¶

Policy Enforcement: Primary location for inter-zone traffic filtering
Custom Filters: ICMP and other protocol-specific rules within policies
Service Matching: Allows or denies services based on policy configuration

POSTROUTING Hook¶

Masquerading: Source NAT for outbound traffic when policies enable masquerading

Emergency Lockdown¶

For security emergencies (active breaches, suspicious activity), the firewall supports an immediate lockdown mode that blocks ALL traffic.

Danger

This will immediately terminate all network connections, including SSH. Physical console access is required to restore normal operation. It is also possible to restore normal operation by power-cycling the device.

To activate emergency lockdown:

~$ curl -kX POST -u admin:admin -H "Content-Type: application/yang-data+json" \
        -d '{"infix-firewall:input": {"operation": "now"}}'                   \
        https://example.local/restconf/operations/infix-firewall:firewall/lockdown-mode

To cancel lockdown mode (requires console access):

~$ curl -kX POST -u admin:admin -H "Content-Type: application/yang-data+json" \
        -d '{"infix-firewall:input": {"operation": "cancel"}}'                \
        https://example.local/restconf/operations/infix-firewall:firewall/lockdown-mode

You can check the current lockdown state:

~$ curl -kX GET -u admin:admin -H 'Accept: application/yang-data+json' \
        https://example.local/restconf/data/infix-firewall:firewall/lockdown
{
  "infix-firewall:firewall": {
    "lockdown": false
  }
}

The output from ping clients differ A LOT. Some do not consider ICMP unreachable to be a proper response and it will appear as if the device is not responding at all. Use tcpdump or wireshark to get to the bottom of network mysteries. ↩
